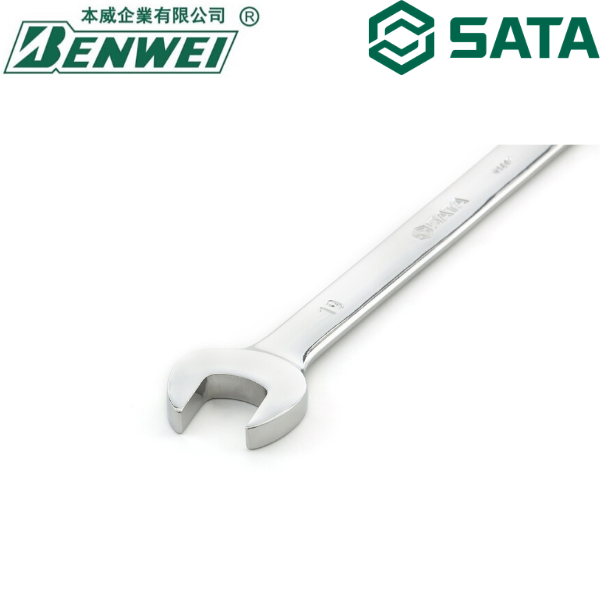

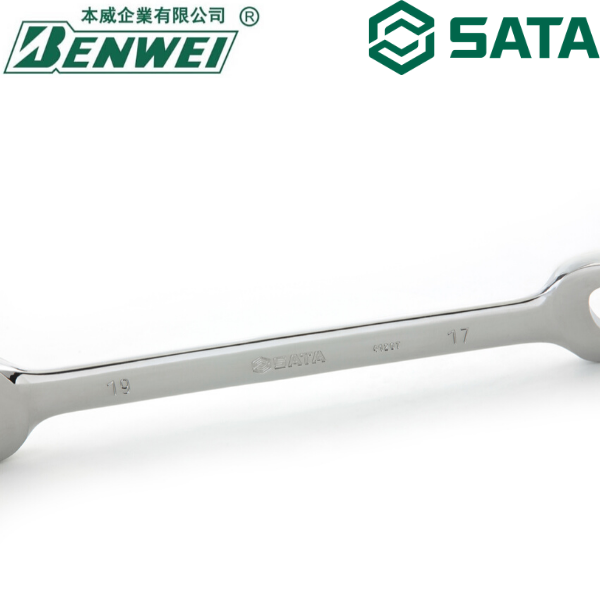

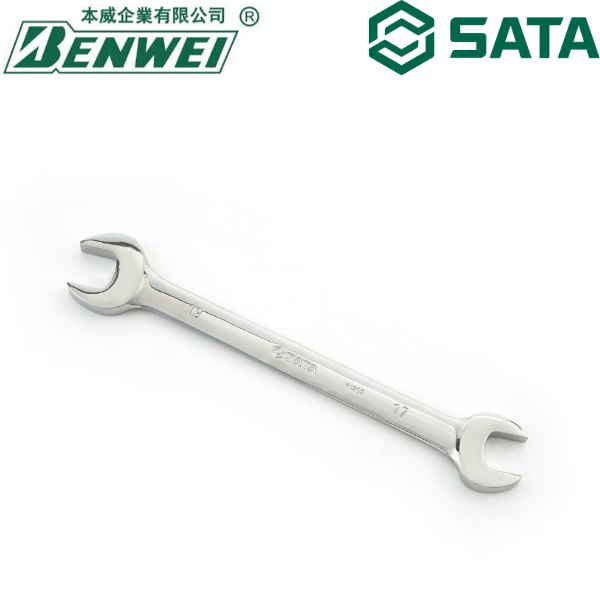

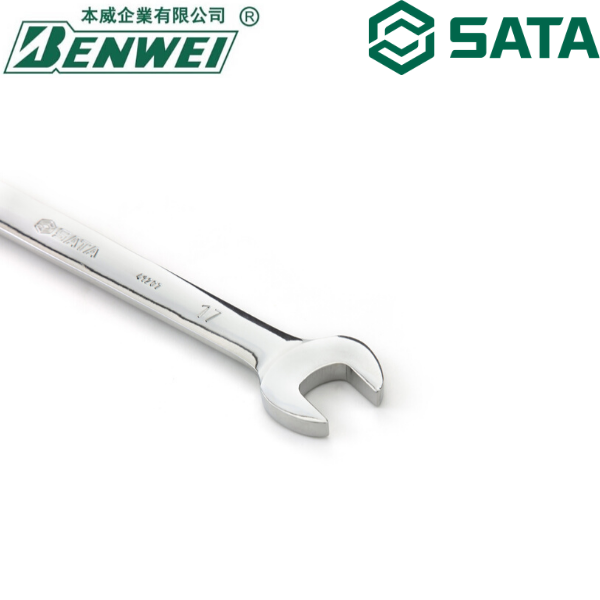

SATA FULL POLISH OPEN END WRENCH

---

Serial No

SATA 41201 - SATA 41223

---

D1

16.5 20.8 23.0 25.0 27.0 29.0 33.4 35.5 39.7 43.8 46.0 48.0 50.0 54.3 62.5 66.8 69.7 75.5

---

D2

12.5 16.5 20.8 23.0 25.0 27.0 29.0 33.4 35.5 39.7 43.8 46.0 48.0 56.4 62.0 66.8 70.0

---

Description

SATA FULL POLISH OPEN END WRENCH

SATA 41216 Specification: 5.5x7 mm Length 124.0 mm D1 16.5 D2 12.5
SATA 41201 Specification: 6x7 mm Length 124.0 mm D1 16.5 D2 12.5
SATA 41202 Specification: 8x10 mm Length 150.0 mm D1 20.8 D2 16.5
SATA 41217 Specification: 9x11 mm Length 150.0 mm D1 23.0 D2 20.8
SATA 41203 Specification: 10x12 mm Length 163.0 mm D1 25.0 D2 20.8
SATA 41204 Specification: 11x13 mm Length 175.0 mm D1 27.0 D2 23.0
SATA 41205 Specification: 12x14 mm Length 187.0 mm D1 29.0 D2 25.0
SATA 41218 Specification: 13x15 mm Length 182.0 mm D1 33.4 D2 27.0
SATA 41219 Specification: 13x16 mm Length 182.0 mm D1 33.4 D2 27.0
SATA 41206 Specification: 14x17 mm Length 201.0 mm D1 35.5 D2 29.0
SATA 41214 Specification: 16x18 mm Length 201.0 mm D1 35.5 D2 33.4
SATA 41207 Specification: 17x19 mm Length 228.0 mm D1 39.7 D2 35.5
SATA 41208 Specification: 19x21 mm Length 240.0 mm D1 43.8 D2 39.7
SATA 41215 Specification: 19x22 mm Length 254.0 mm D1 46.0 D2 43.8
SATA 41209 Specification: 21x23 mm Length 262.0 mm D1 48.0 D2 43.8
SATA 41210 Specification: 22x24 mm Length 285.0 mm D1 50.0 D2 46.0
SATA 41211 Specification: 23x26 mm Length 300.0 mm D1 54.3 D2 48.0
SATA 41212 Specification: 24x27 mm Length 300.0 mm D1 54.3 D2 48.0
SATA 41220 Specification: 27x30 mm Length 290.0 mm D1 62.5 D2 56.4
SATA 41213 Specification: 30x32 mm Length 310.0 mm D1 66.8 D2 62.0
SATA 41221 Specification: 30x34 mm Length 329.0 mm D1 69.7 D2 66.8
SATA 41222 Specification: 32x34 mm Length 329.0 mm D1 69.7 D2 66.8
SATA 41223 Specification: 34x36 mm Length 341.0 mm D1 75.5 D2 70.0

---
