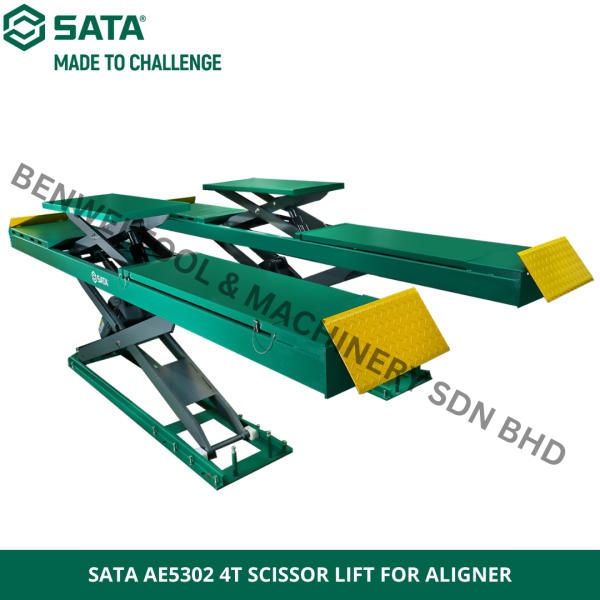

SATA AE5302 4T SCISSOR LIFT FOR ALIGNER

SATA AE5302 4T SCISSOR LIFT FOR ALIGNER

Serial No

SATA AE5302

Description

  • Rated Load : 4ton
  • Minimun Height : 330mm
  • Loaded Rising Time : 60s
  • Load Falling Time : 50s
  • Motor Power : 3KW
  • Motor Shell : Aluminum Alloy
  • First Lift Height : 1850mm
  • Secondary Lift Time : 435mm
  • Secondary Lifting Platform Length : 1400mm
  • Working Platform Length : 4500mm

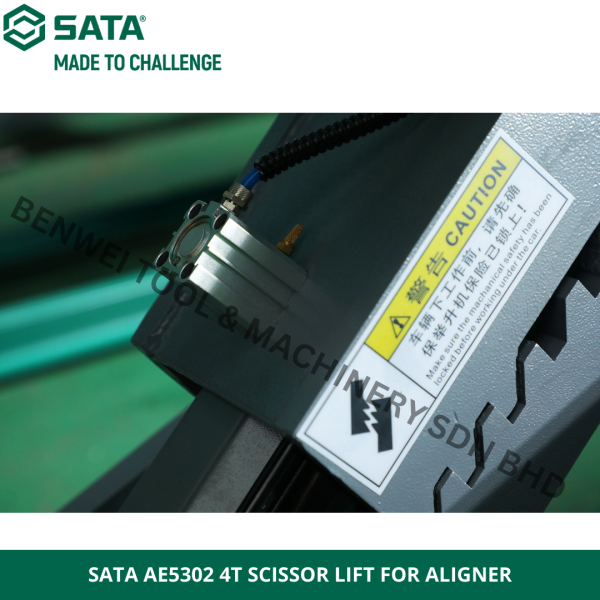

  • Number of Mechanical Safety teeth : 3teeth
  • Reinforced platform rectangular tube, 150 x 50mm

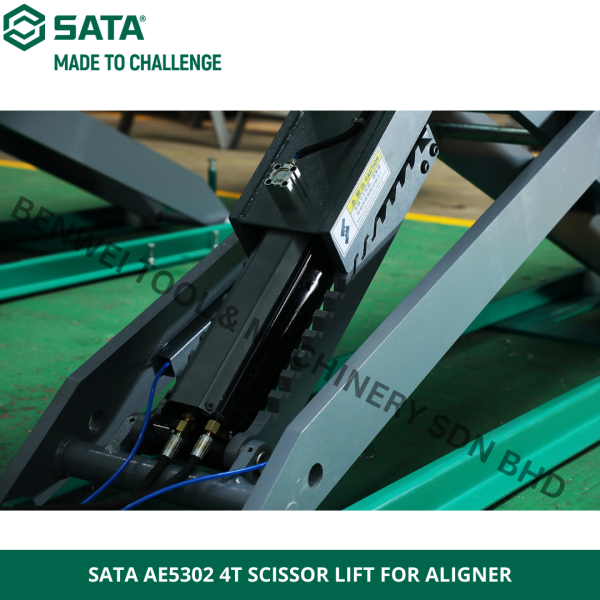

  • Trident protection, increasing the strength of safety block
  • Motor with aluminum alloy housing, featuring fast heat dissipation
  • 3 kw motor, reducing load rate
  • Extended working platform (4500mm) for more models
  • With an electronic detection device for checking whether the safety mechanism activated, avoiding safety hazards caused by deactivated safety mechanism
  • Sata pcb safety control, providing efficiency and stability
  • Optimized scissor arm design, ensuring stable lowering under full load to the lowest position
  • Oil-filling valve imported from Italy, ensuring good airtightness
