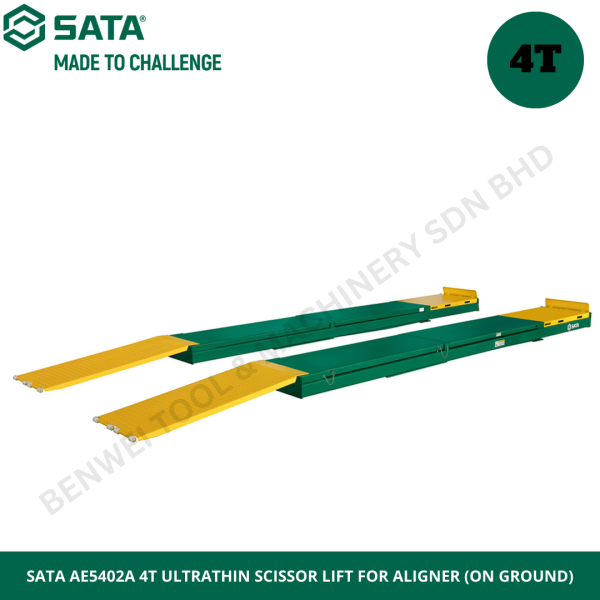

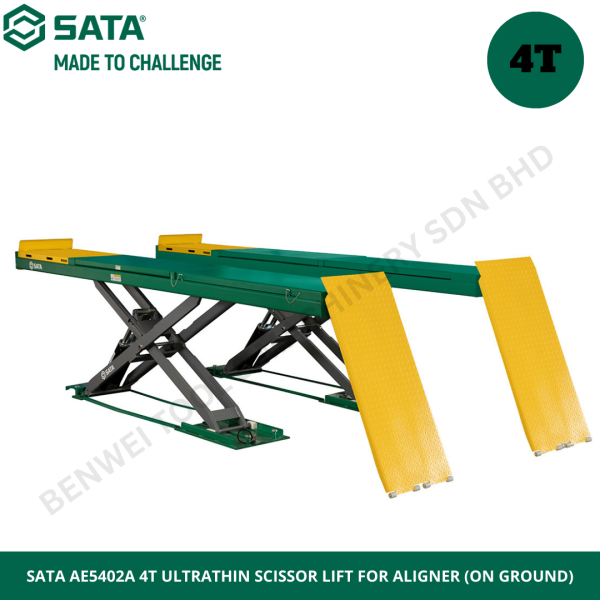

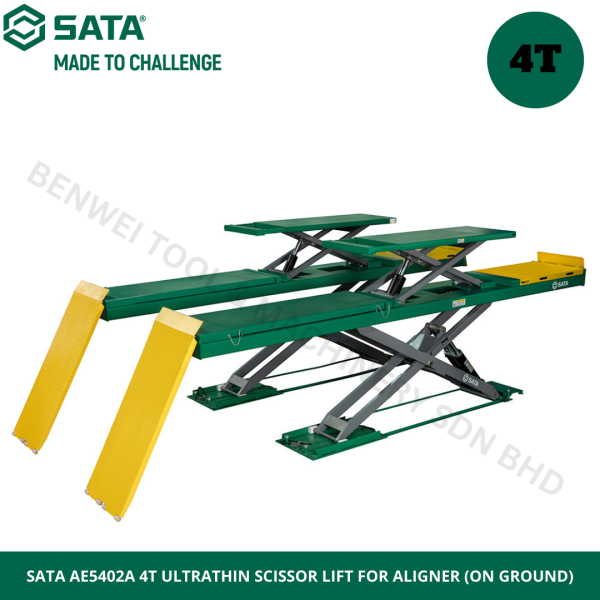

SATA AE5402A 4T ULTRATHIN SCISSOR LIFT FOR ALIGNER (ON GROUND)

SATA AE5402A 4T ULTRATHIN SCISSOR LIFT FOR ALIGNER (ON GROUND)

Serial No

SATA AE5402A

Description

  • Capacity : 4t
  • Voltage : 220v / 415v

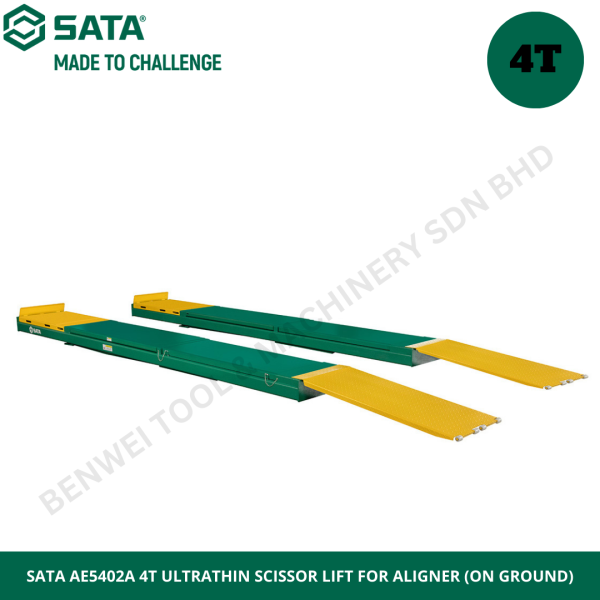

  • Minimum Height : 190mm
  • Main Lift Maximum Height : 1630mm

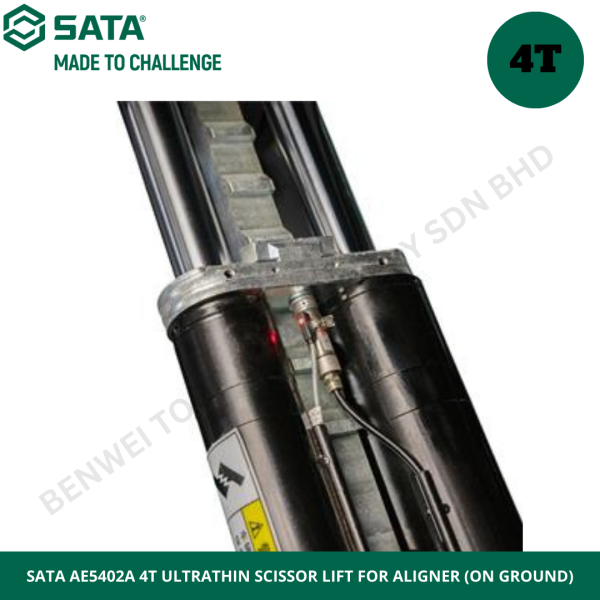

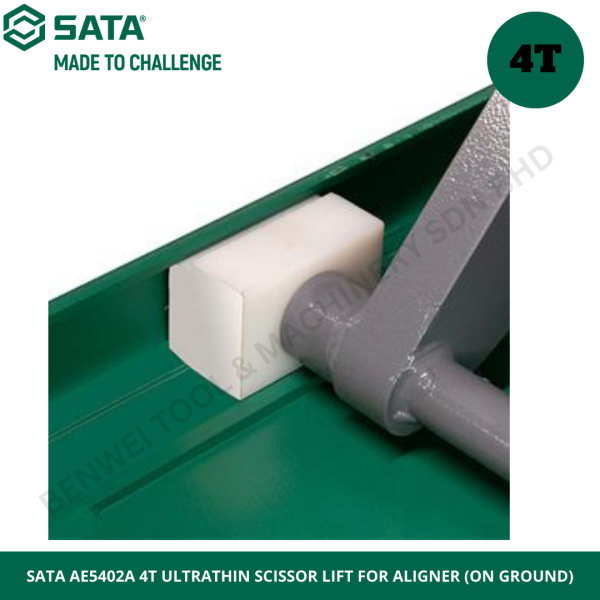

  • Mechanical Safety Device : High Strength Safety Block
  • Platform Length : 4520mm
  • Platform Length Of Secondary Jack : 1540-1750mm

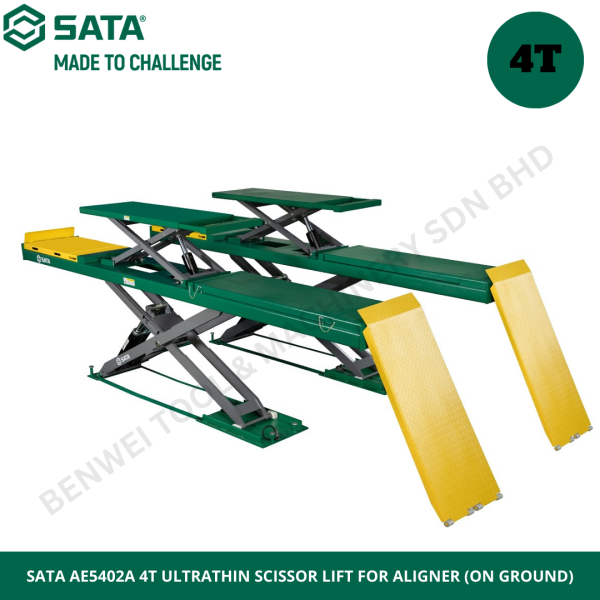

  • Secondary Jack Lift Height : 430mm
  • Drop Time : 50s
  • Rise Time : 60s
  • Electric Control Method : Sata PCB Control
  • Motor Shell : Aluminum Alloy
  • Motor Power : 3kw

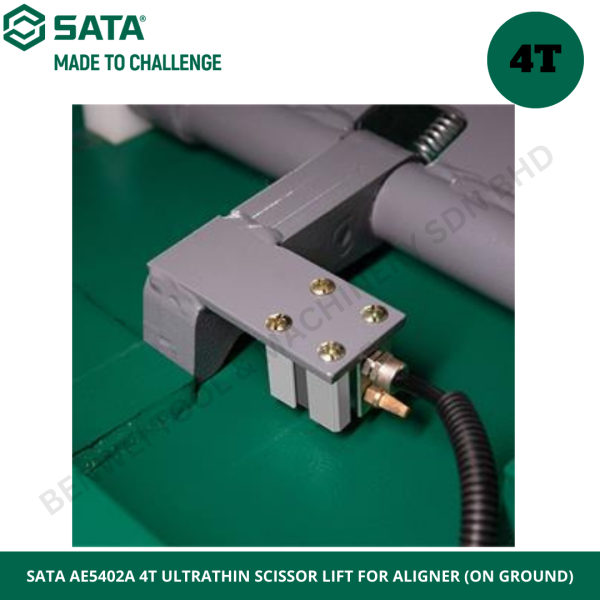

  • Unlock Detection : Yes
  • Electronic detection of the insurance open state, to avoid the insurance not opened to causing safety hazards
  • Mechanical and hydraulic double protection, safe and reliable
  • 3KW large motor, reduce the motor load rate
  • Minimum height 190mm, the slope of the car is small and easy to get on the car
  • SATA PCB safety control, efficient and stable
  • The use of Italian imported oil fill valve, and good sealing is not easy to seep oil
  • The platform adopts the whole plate bending process, and the strength is improved
  • The power arm optimization design, the lowest position is fully loaded and smoothly lifted
