SATA AE5002 4T 2 POST LIFT BASE PLATE

SATA AE5002 4T 2 POST LIFT BASE PLATE

Serial No

SATA AE5002

Description

  • Rated Load : 4ton
  • Minimum Height : 95mm
  • Maximum Lift Height : 1930mm
  • Loaded Rising Time : 60s
  • Load Falling Time : 50s
  • Motor Power : 2.2KW
  • Motor Shell : Aluminum Alloy
  • Unlock method : Manual Unilateral
  • Overall Height : 2820mm
  • Inside Column Width : 2860mm
  • External Width of Plate : 3430mm
  • Tray Thread : 3knots 70mm adjustable
  • Trat and High Bush Length : 70mm
  • Arm Type : 2+3 Straight Arm
  • Electric Control Mode : 24V Security Control Box

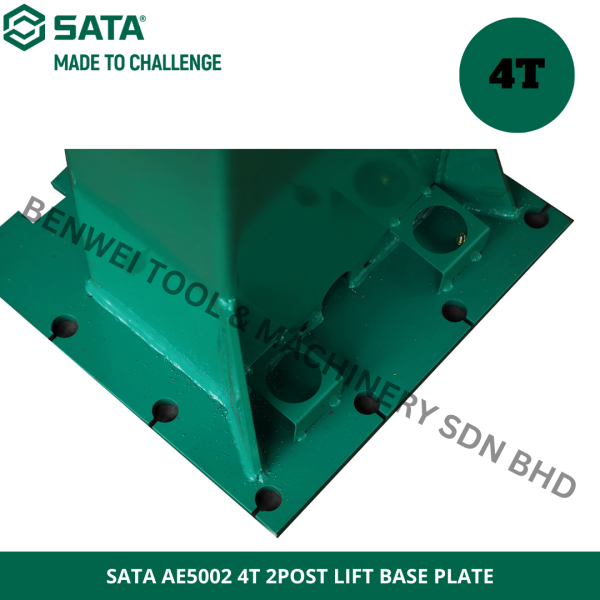

  • Base Plate Fixed Hole Position : Unilateral 8pcs
  • Voltage : 415V / 220V
  • Motor with aluminum alloy housing, featuring fast heat dissipation
  • 24V safe voltage control
  • Sliding table welded by 16mm steel sheets, with strength improved
  • With 16 pieces of M18x160 expansion bolts
  • 2 sections of straight bracket arms + 3 sections of straight bracket arms

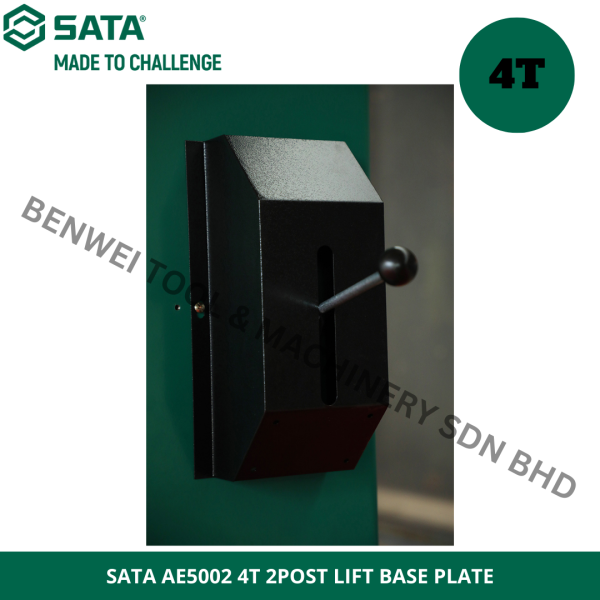

  • With a safety mechanism on one side for manual unlocking; the safety mechanism automatically locks itself when
  • a hand is away from the mechanism

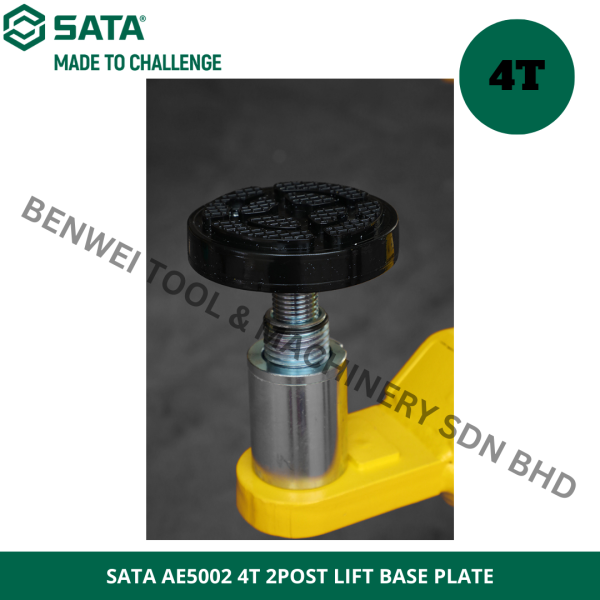

  • Tray with high bush as standard, for SUV models
  • Sliding table lengthened to 1160MM with strength improved

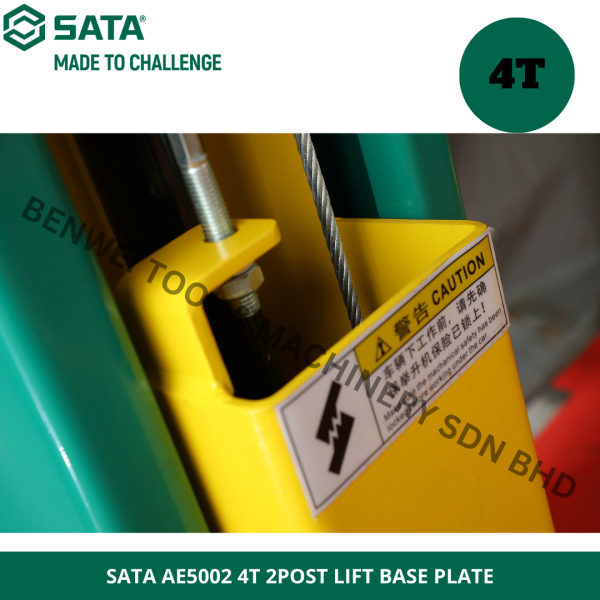

  • Bracket arm safety mechanism with helical teeth design, ensuring perfect gear mesh
